SeanHoppe.com > CLEO Tips > Cleo EDI Integrator > Mailroom: Work With Connections 1

Mailroom: Work With Connections 1

28th October 2016

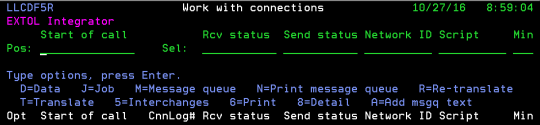

Work With Connection

Option Column Options

extol edi integrator work with connections

Option D: Used to view the wrapped data for a connection in the format in which it was originally received and/or sent

Option J: Used to display the job for a selected connection

Option M: Used to view the message queue for a selected connection. Press Enter to view all messages or [F4] to prompt the command to display parameters

Option N: Used to print the message queue for a selected connection.  Press Enter to view all messages or [F4] to prompt the command to display parameters

Option R: Used to re-translate an entire connection on messages which were preciously translated with errors after corrections were made

Option T: Used to schedule an entire connection for translation

Option 5: Used to work with the interchanges of a specified connection. The ‘Work with interchanges’ panel will be displayed

Option 6: Used to print detailed information for a specified connection

Option 8: Used to view detailed connection information of a specified connection. The ‘Display connection details 1′ panel will be displayed

Option A: Used to add message queue information

Function Keys

extol edi integrator work with connections functions

[F3]: Used to return to the previous panel

[F6]: Used to print a listing of basic information on all connections in the log of connections file

[F11]: Used to go to the ‘Work with connection data’ panel

[F14]: Used to work with scheduled translation jobs. The ‘Work with incoming translation jobs’ panel will be displayed

[F16]: Used to set the scan limit for this program

[F17]: Used to change the order in which the dates of the files are displayed.

[F18]: Used to open the ‘Work with connections by log #’ panel
